e-stim-e-box-series-1-remote View larger

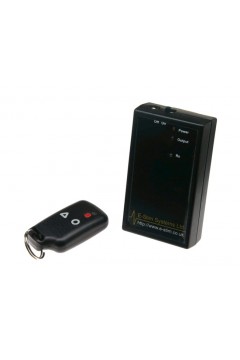

MB E-STIM E-Box Series 1 Remote

MB673004

New product

Only for Order

By buying this product you can collect up to 9259 loyalty points. Your cart will total 9259 points that can be converted into a voucher of 2 778 Ft.


92 590 Ft tax incl.

Add to wishlist

More info

Now we have can offer the latest in E-Stim Technology with the E-Stim Systems Series 1 Remote Kit. With a wireless keyfob style transmitter and a small powerful and discreet electro stimulation receiver we can now offer effective electro stimulation via radio!!!

Using a high quality digitally encoded transmitter and receiver (offering a range of upto 80M depending on environmental conditions), together with a dual microprocessor control system you can be sure that the Series 1 Remote Kit offers simple and powerful remote controlled electro stimulation at a reasonable price. And now it features the unique motion sensor.

Key Features

  • Digitally Encoded Radio Control With a range of up to 50M
  • Keyfob style transmitter and small discreet receiver
  • Motion Sensor
  • 21 output levels over 5 different modes
  • The ability to link multiple receivers and transmitters
  • Safe biphasic current limited AC output

Multiple Modes
With 5 different control modes - Fire, Pulse, Continuous, Motion and Training everything is now easily controllable from the simple keyfob transmitter. We don't just offer simple control over the output level either. You can now control the subtle nuances of the output (pulse speed/pulse width) directly from the keyfob transmitter. It's easy as 123 (1-Fire, 2- Continuous, 3-Pulse)!!!

Multiple output Levels
The output is digitally controlled over 21 levels again easily selectable from the keyfob transmitter. With auto zero and over range indicators you can ensure you are in control at all times.

Learn Mode
Each Transmitter is digitally encoded to a receiver. The receivers built in learn function allows multiple receivers to work in combination with multiple transmitters, as well as the other way around. In other words one transmitter can control several receivers, as well as one receiver responding to several transmitters...The choice is yours. Due to the digital encoding system you can ensure that your receiver will not respond to other devices, unless of course you want it to. All this can be setup simply in seconds.

More Power
The high quality microprocessor controlled voltage generator mean that batteries last longer and with a digitally generated pulse system you can ensure that the power is directed exactly where it is most effective.

Safety
With built in current limiting, soft start controls and BiPhasic AC output you can ensure that the E-Stim Systems Series 1 Remote is designed with your safety in mind.

Compatibility
The E-Stim Series 1 Remote is compatible with all E-Stim Systems electrodes as well as other electrodes manufactured by quality manufacturers.

Guarantee
All units are shipped with a full no quibble 12 months guarantee.

Remote Kit Specifications

  • Channels/ Outputs - Radio Controlled Single Channel, via 3.5mm mono socket
  • Display - High Brightness LED's indicating Power On, Output and Receiver Activity.
  • Operating Modes - Fire, Continuous, Pulse, Motion and Training, with 21 output Levels and adjustment of pulse speed and width
  • Controls - Receiver : Power on/off, Learn Mode
  • Transmitter : Up/Down and Fire/Select
  • Output Waveform - BiPhasic Current limited pulsed AC
  • Radio Specification Keyloc Encoded AM 433Mhz
  • Power Supply - Receiver :Standard 9 Volt Alkaline (PP3) (Not Supplied) Transmitter : 12V (Supplied)
  • Dimensions (approximate.) Receiver : 110mm x 61mm x 34mm
  • Weight (with battery) Receiver : 250g Transmitter : 50g

Supplied Accessories

  • 1 piece E-Box receiver
  • 1 piece Keyfob Transmitter with battery
  • 1 piece 3.5mm to 2mm output cable,
  • 4 pieces Self Adhesive Electrode Pads,
  • 1 piece Carry Case
  • 1 piece Comprehensive User guide.
